Understanding Your Home's Electrical Panel

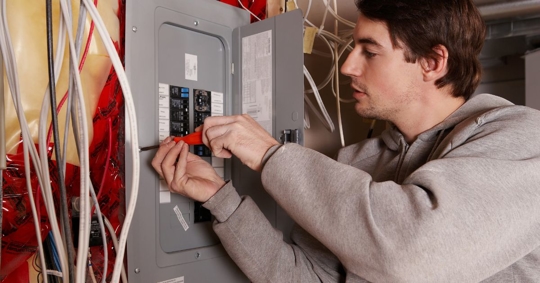

man working on electrical panel
|

Components of an Electrical Panel:

Main Breaker

The main breaker is the heart of your home's electrical panel, serving as the primary control point for the entire electrical system. It acts as a switch that can cut off the power supply to your home, which is crucial during emergencies or when performing maintenance. Understanding its role is essential for any homeowner, as it provides a safety net against electrical overloads that could potentially lead to fires. The main breaker is typically located at the top of the panel and is larger than the individual circuit breakers. It's important to familiarize yourself with its location and operation, ensuring that in the event of an electrical issue, you can quickly and safely disconnect power.

Safety is paramount when dealing with the main breaker. Before you attempt to operate it, ensure that your hands are dry and you're standing on a dry surface to prevent electrical shock. Regularly inspect the main breaker for any signs of wear or damage, such as rust or corrosion, which could impede its function. If you notice any irregularities, it's wise to consult a professional electrician to assess the situation. Remember, the main breaker is your first line of defense against electrical hazards, so keeping it in good working order is crucial for the safety of your home and family.

Circuit Breakers

Circuit breakers are the unsung heroes of your electrical panel, each one responsible for protecting a specific circuit in your home. They come in various types, including standard, GFCI, and AFCI breakers, each designed to protect against different electrical issues. Standard breakers protect against overloads and short circuits, while GFCI breakers prevent electrical shock in wet areas, and AFCI breakers guard against arc faults that could cause fires. Knowing the function of each type is essential for effective troubleshooting and maintenance.

Labeling your circuit breakers is a simple yet effective way to streamline troubleshooting and maintenance. By clearly marking each breaker with the area or appliance it controls, you can quickly identify and address issues without unnecessary guesswork. This practice not only saves time but also enhances safety by reducing the risk of accidentally turning off critical systems. Regularly check your labels for accuracy, especially after making any electrical modifications or additions to your home. A well-organized electrical panel is a key component of a safe and efficient home electrical system.

How to Read and Understand Your Electrical Panel:

Reading the Panel Label

The panel label is your roadmap to understanding the electrical capabilities and limitations of your home. It provides crucial information such as the amperage and voltage ratings, which are vital for ensuring that your electrical system can handle your household's demands. Interpreting this information correctly can help you avoid overloading circuits and prevent potential hazards. Familiarize yourself with the label's layout and symbols, and don't hesitate to consult the panel's manual or a professional if you're unsure about any details.

Maintaining accurate and up-to-date labels on your electrical panel is not just a matter of convenience; it's a critical safety measure. As you make changes to your home's electrical system, such as adding new appliances or circuits, update the labels accordingly. This practice ensures that anyone who interacts with the panel, whether a homeowner or a professional electrician, has the correct information needed to work safely and efficiently. Regularly review the labels for clarity and accuracy, and replace any that have become faded or illegible over time.

Understanding Circuit Layout

Mapping out the layout of your home's circuits is a valuable exercise that can save you time and frustration when dealing with electrical issues. By understanding which circuits control specific areas or appliances, you can quickly identify the source of a problem and take appropriate action. Start by creating a simple diagram of your home's layout and marking the circuits that correspond to each area. This visual aid can be invaluable during troubleshooting and maintenance tasks.

To trace circuits and identify potential issues, you'll need a few basic tools, such as a circuit tester and a multimeter. These instruments can help you pinpoint the exact location of a fault or verify that a circuit is functioning correctly. When tracing circuits, always prioritize safety by turning off power to the affected area and wearing appropriate protective gear. If you encounter complex or persistent issues, it's best to consult a professional electrician who can provide expert guidance and solutions.

Safety and Maintenance Tips:

Routine Inspection and Maintenance

Conducting routine inspections of your electrical panel is a proactive way to ensure the safety and reliability of your home's electrical system. Begin by visually inspecting the panel for any signs of wear or damage, such as rust, corrosion, or frayed wires. These issues can compromise the panel's functionality and pose serious safety risks. Additionally, check for any unusual noises or odors, which could indicate overheating or other problems. Regular inspections can help you catch and address issues before they escalate into more significant concerns.

Regular maintenance is key to extending the lifespan of your electrical panel and ensuring its safe operation. This includes tightening any loose connections, replacing worn-out components, and ensuring that the panel is free from dust and debris. Pay attention to any signs of wear or damage, such as burnt or discolored areas, which could indicate overheating or other issues. If you notice any concerning signs, it's important to consult a professional electrician to assess the situation and perform any necessary repairs.

Handling Tripped Breakers

Tripped breakers are a common occurrence in many households, often caused by overloaded circuits or short circuits. When a breaker trips, it's essential to reset it safely and understand the underlying cause to prevent future occurrences. Begin by turning off all appliances and lights on the affected circuit, then locate the tripped breaker in the panel. It will be in the "off" position or halfway between "on" and "off." To reset it, switch it fully to the "off" position before turning it back to "on."

If a breaker continues to trip after being reset, it's a sign of a more significant issue that requires professional attention. Persistent tripping could indicate an overloaded circuit, faulty wiring, or a malfunctioning appliance. In such cases, it's best to contact a professional electrician to diagnose and resolve the problem. Attempting to fix complex electrical issues on your own can be dangerous and may lead to further complications. Prioritize safety by seeking expert help when needed.

Troubleshooting Common Electrical Issues:

Frequent Tripping and Overloads

Frequent tripping of circuit breakers is a common issue that can be both frustrating and concerning for homeowners. This problem often arises from overloaded circuits, where the electrical demand exceeds the circuit's capacity. To address this issue, start by identifying the high-demand appliances or devices connected to the affected circuit. Consider redistributing these appliances across different circuits to balance the load and prevent future tripping. Additionally, unplugging devices when not in use can help reduce the overall electrical demand.

Balancing electrical loads is crucial for preventing frequent tripping and ensuring the safe operation of your home's electrical system. If redistributing appliances doesn't resolve the issue, it may be necessary to upgrade your electrical panel or add additional circuits to accommodate your household's needs. Consult a professional electrician to assess your home's electrical capacity and recommend appropriate solutions. By taking proactive measures, you can enhance the safety and efficiency of your electrical system and minimize the risk of future issues.

Identifying Faulty Breakers

Faulty breakers can pose significant safety risks and disrupt the functionality of your home's electrical system. Common signs of a faulty breaker include frequent tripping, difficulty resetting, or a burning smell emanating from the panel. If you suspect a breaker is faulty, it's essential to test it safely and replace it if necessary. Begin by turning off power to the affected circuit and using a multimeter to check for continuity. If the breaker fails the test, it's time to replace it with a compatible part.

When replacing a faulty breaker, it's crucial to use compatible replacement parts to ensure the safe and reliable operation of your electrical system. Consult the panel's manual or a professional electrician to verify the correct specifications for the replacement breaker. Attempting to install an incompatible breaker can lead to further issues and compromise the safety of your home. If you're unsure about the replacement process, it's best to seek professional assistance to ensure the job is done correctly and safely.

Legal and Compliance Considerations:

Understanding Local Electrical Codes

Local electrical codes and regulations play a vital role in ensuring the safety and compliance of your home's electrical system. These codes outline the standards for panel installations, wiring, and other electrical components, helping to prevent hazards such as electrical fires and shocks. Familiarize yourself with the codes applicable to your area, as they can vary depending on location. Adhering to these regulations is crucial for both safety and legal reasons, as non-compliance can result in fines or other penalties.

Compliance with local electrical codes is not only a legal requirement but also a critical safety measure. When undertaking any electrical work, whether it's a simple repair or a complete panel upgrade, ensure that all work meets the applicable standards. This may involve obtaining permits, hiring licensed professionals, and scheduling inspections to verify compliance. By prioritizing compliance, you can protect your home and family from potential hazards and ensure the long-term safety and reliability of your electrical system.

Permits and Inspections

Permits and inspections are essential components of any electrical work, ensuring that all installations and modifications meet safety standards and regulations. Before starting any electrical project, check with your local authorities to determine if a permit is required. This step is crucial for both legal compliance and safety, as it ensures that the work is performed to the highest standards. Once the work is completed, schedule an inspection to verify that it meets all applicable codes and regulations.

Inspections play a vital role in maintaining the safety and compliance of your home's electrical system. During an inspection, a qualified professional will assess the work to ensure it meets all relevant standards and regulations. This process helps identify any potential issues or hazards, allowing them to be addressed before they become serious problems. By prioritizing permits and inspections, you can ensure the safety and reliability of your electrical system and avoid potential legal issues.
